GEO-FOG Manager

5 Ways GEO-FOG Manager Aids Your Application’s Integration & Customization

A screen capture of GEO-FOG Manager's User Interference that depicts various types of data in charts and graphs, a map of a specific geographical location which includes filters, and two black, cylindrical GEO-FOG devices set on top of the screen capture.
Schedule a Consultation

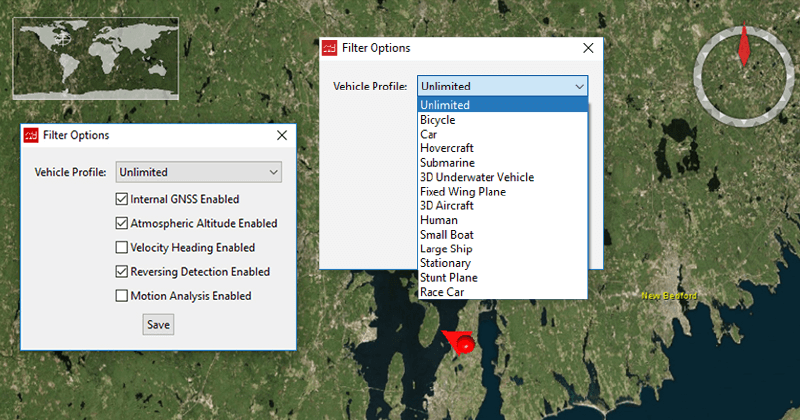

A satellite image of a region of the world with two filtering options laid on top. The first filter option depicts the filter options as is, with a dropdown and a list of checkboxes. The second depicts the same filter options, but the dropdown is engaged and showing a variety of vehicles to choose from.

1. Filter Options

Designed for a wide range of applications from cars to helicopters to autonomous underwater vehicles, use the Vehicle Profile settings to compensate for your platform’s unique dynamics.

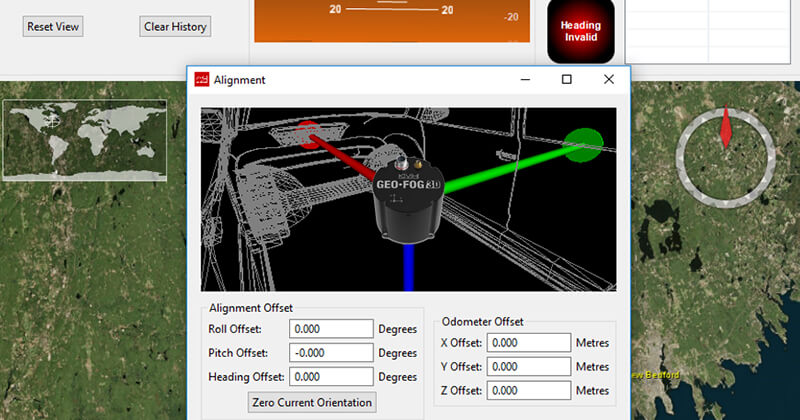

A satellite image of a region of the world with an alignment window laid on top. It displays text fields for various alignment details.

2. Alignment

When the system is not mounted perfectly level with the vehicle frame, use the Alignment tool to correct for small mounting errors and to adjust the mounting alignment to provide a position and orientation output relative to the vehicle frame.

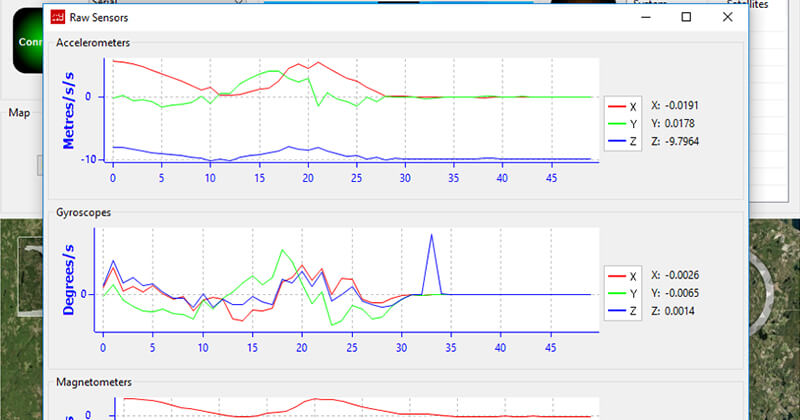

A satellite image of a region of the world with a window laid on top that displays two line graphs. One shows data for accelerometers and the other shows data for gyroscopes. A third chart that shows data for magnetometers is cut off.

3. Raw Sensors

For applications that require raw inertial data in addition to the navigation output, GEO-FOG Manager allows you to see this data in real time and provide feedback to your control system.

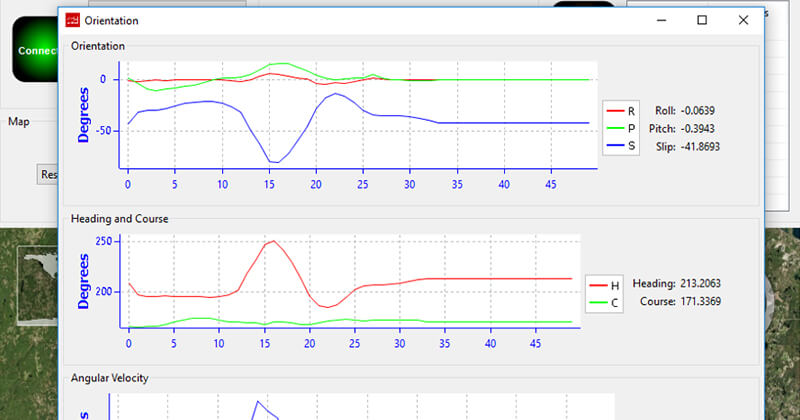

A satellite image of a region of the world with a window laid on top that displays two line graphs. One shows data for orientation and the other shows data for heading and course. A third chart that shows data for angular velocity is cut off.

4. Orientation

Monitor roll, pitch, heading and course data in real time to see how your system reacts to changes in these values.

A satellite image of a region of the world with a window laid on top that displays two line graphs. One shows data for accelerometers and the other shows data for gyroscopes. A third chart that shows data for magnetometers is cut off.

5. GPIO

A full sensor fusion tool, the GEO-FOG 3D has the built-in capability of using data from auxiliary sensors around the vehicle to provide a high accuracy position and orientation solution.

Complete. Ready to Use.

GEO-FOG Manager includes all the necessary antennas, cables, and power supply you need to get started.
