ENVIRONMENTAL TEST CAPABILITIES
EMCORE Space & Navigation, LLC
450 Clark Drive, Budd Lake, NJ 07828
QMS Certifications:
AS9100:2016
Calibration System:
ISO 10012
Contact: TestLab@emcore.com
THERMAL VACUUM CHAMBERS

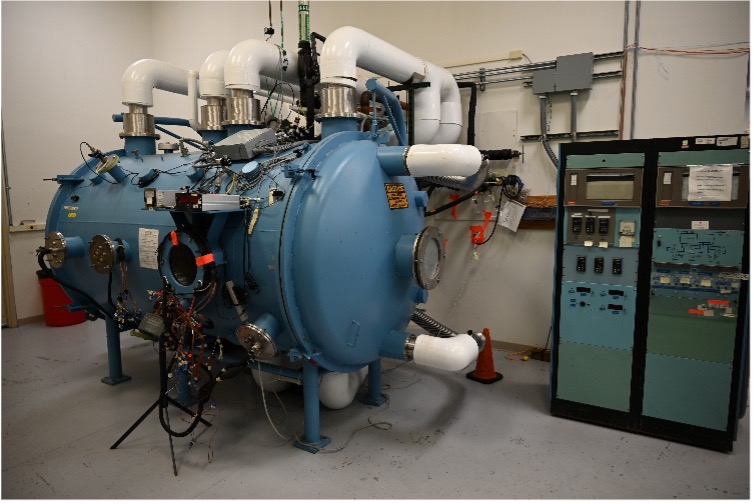

Tenney T8 Thermal Vacuum Chamber
- Work Zone: 50” Diameter x 8’ Long
- Pressure: Ambient to 10-7 Torr
- Pump: Cryogenic Vacuum Pump
- Temperature Control:
- Platen: -300°F to +350°F
- Shroud A: -300°F to +350°F
- Shroud B: -300°F to +350°F

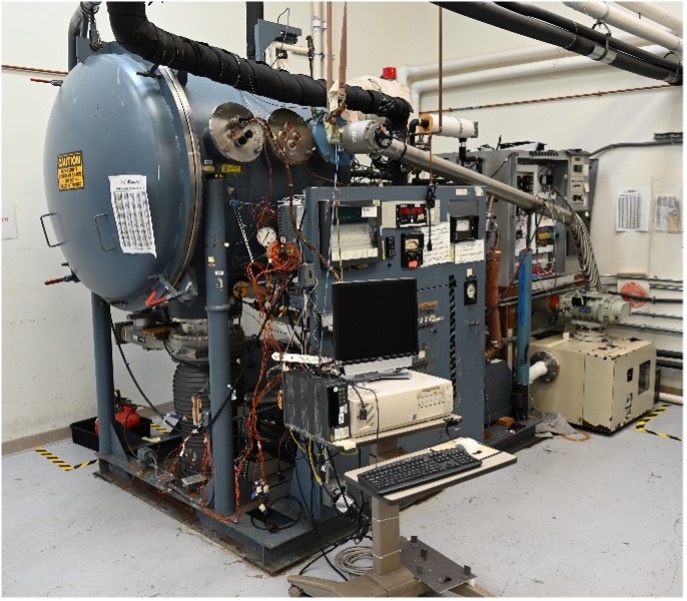

Tenney T3 Thermal Vacuum Chamber
- Work Zone: 48” Diameter x 50” Long
- Pressure: Ambient to 10-7 Torr
- Temperature Control:
- Shroud: -300F to +250F
- Platen: -65F to +250F
- Pumps:
- Varian VHS 6 Diffusion Pump (1550L/sec)
- Rapid Decompression Pump: Ambient to 0.1 Torr in 5 minutes

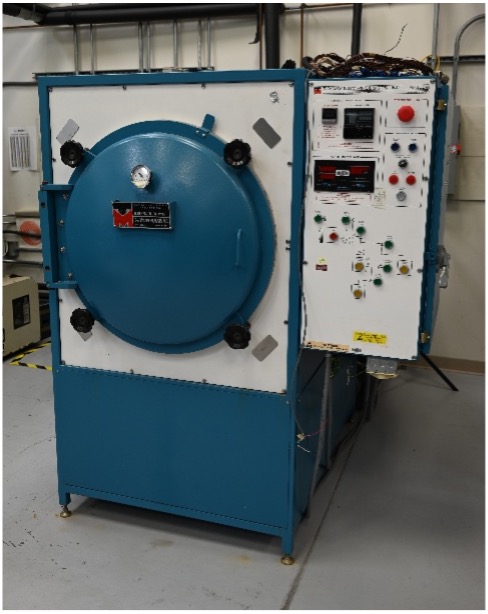

T-M Products H-3004 Vacuum Chamber
- Work Zone: 30” Diameter x 48” Long
- Pressure: Ambient to 10-7 Torr
- Temperature Control: Ambient to +400F
- Pump: Varian VHS 6 Diffusion Pump (1550 L/sec)

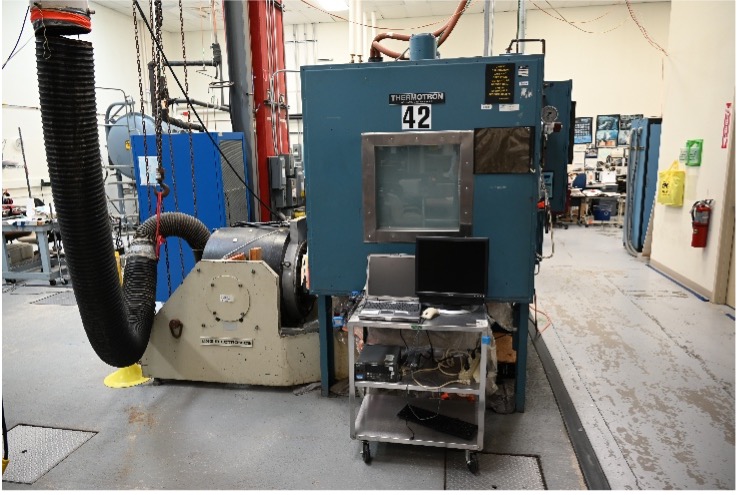

COMBINED VIBRATION/SHOCK AND TEMPERATURE
Temperature Chamber:
- Work Zone: 30” x 30” x 36” high
- Temperature Control: -70C to +200C
Shaker:
- Ling A395 (Air Cooled)
- Work Zone: 30” x 26” x 1.5” thick (standard magnesium slip plate)
- Frequency Range: 0 to 3000Hz
- Force Rating: 5000 lb-f
- Displacement: 0.5” (pk-pk)

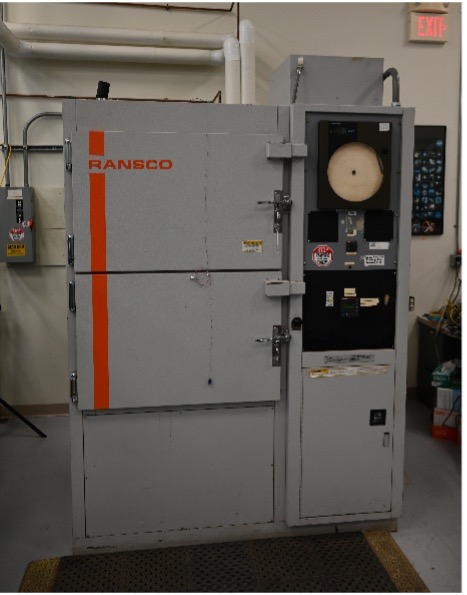

THERMAL SHOCK CHAMBER
RANSCO 7102-1 THERMAL SHOCK CHAMBER:
- Work Zone: 15” x 15” x 15”
- Temperature Control:
- Cold Range: -70C to Ambient
- Hot Range: +75C to +200C
- Automated Transfer System
- Dry nitrogen purge system
VIBRATION/SHOCK

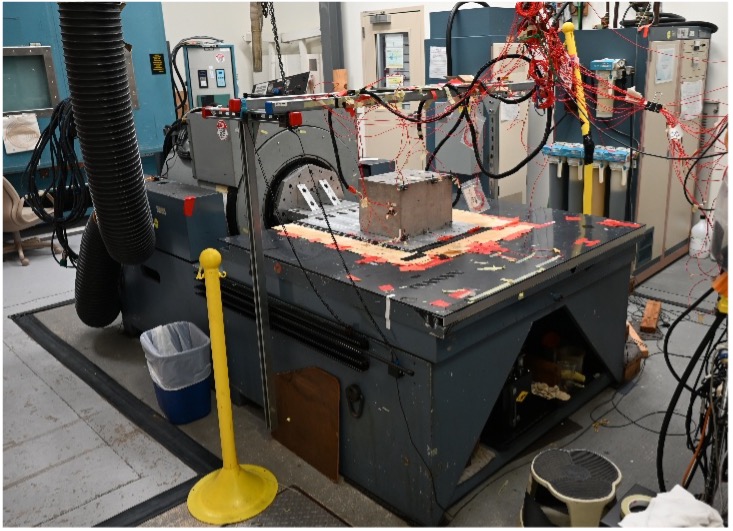

Unholtz-Dickie T2000 Shaker:
- Work Zone: 48” x 48” x 2.5” thick (standard magnesium slip plate with 6 HD Hydraulic Hold Down Bearings for vertical and lateral restraint)
- Lightweight Induct-A-Ring Armature (100 Lbs): 17.3” Diameter with ½”-13 threaded inserts 4, 8, 12, 16” bolt circles for mounting
- Forcing Rating: 20,000 lb-f Sine and Random, 40,000 lb-f for Shock
- Crane Auto Load Support to 1900 Lbs.
- Displacement: 2” (pk-pk)
- High Armature resonance: 2250 Hz
- Frequency Range: 5 to 3000Hz
- Pyro Shock: 700g SRS @ 3000Hz

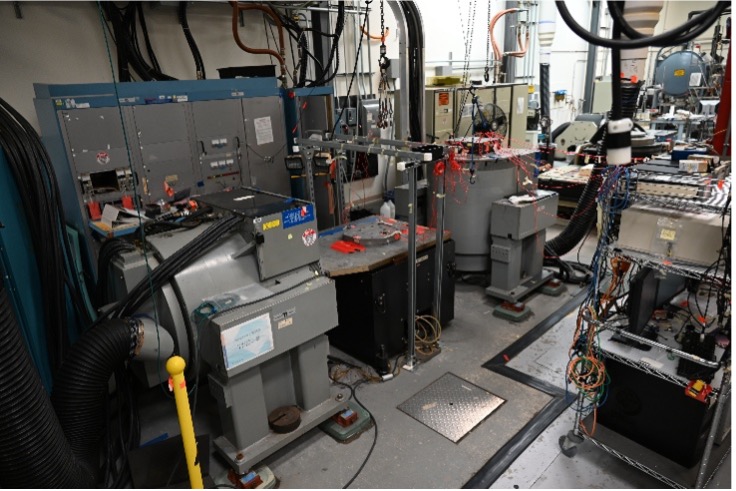

Unholtz-Dickie T1000 Shaker (x2):
- One shaker in vertical position, one in horizontal position for quicker transfers between axes
- Work Zone: 48” x 48” x 2.5” thick (standard magnesium slip plate with 6 HD Hydraulic Hold Down Bearings for vertical and lateral restraint)
- Lightweight Induct-A-Ring Armature (100 Lbs): 17.3” Diameter with ½”-20 fine threaded inserts 4, 8, 12, 16” bolt circles for mounting
- Forcing Rating: 12,000 lb-f Sine and Random, 20,000 lb-f for Shock
- Displacement: 1” (pk-pk)
- High Armature resonance: 2250 Hz
- Frequency Range: 5 to 3000Hz
- Pyro Shock: 500g SRS @ 3000Hz

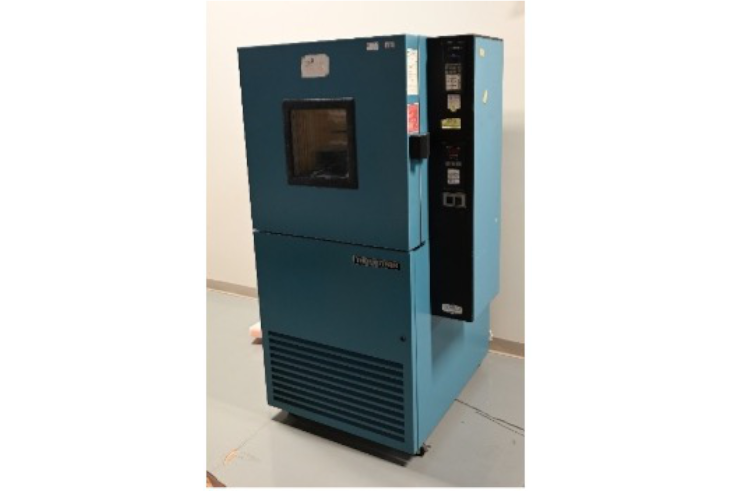

HUMIDITY CHAMBER
Thermotron SM-8C
-
Temperature Control: -40C to +180C
-
Humidity Range: 20% RH to 95% RH
-
Work Zone: 24" x 24" x 24"
MISCELLANEOUS
Digital Acquisition:
- National Instruments PCIe-6346
- Fluke 2645A (x2)
- Hi-Techniques/Synergy Digital Recorder
Additional Shaker Tables:
- Ling B335
- Ling A395
Vibration and Shock Controllers:
- Spectral Dynamics Jaguar Systems M/N 2560
- System 1: 18 channels
- System 2: 30 channels
- Unholtz-Dickie VWIN 2
- 18 channels
Various Thermal Chambers: -65F to +400F
