Solid-state quartz MEMS technology

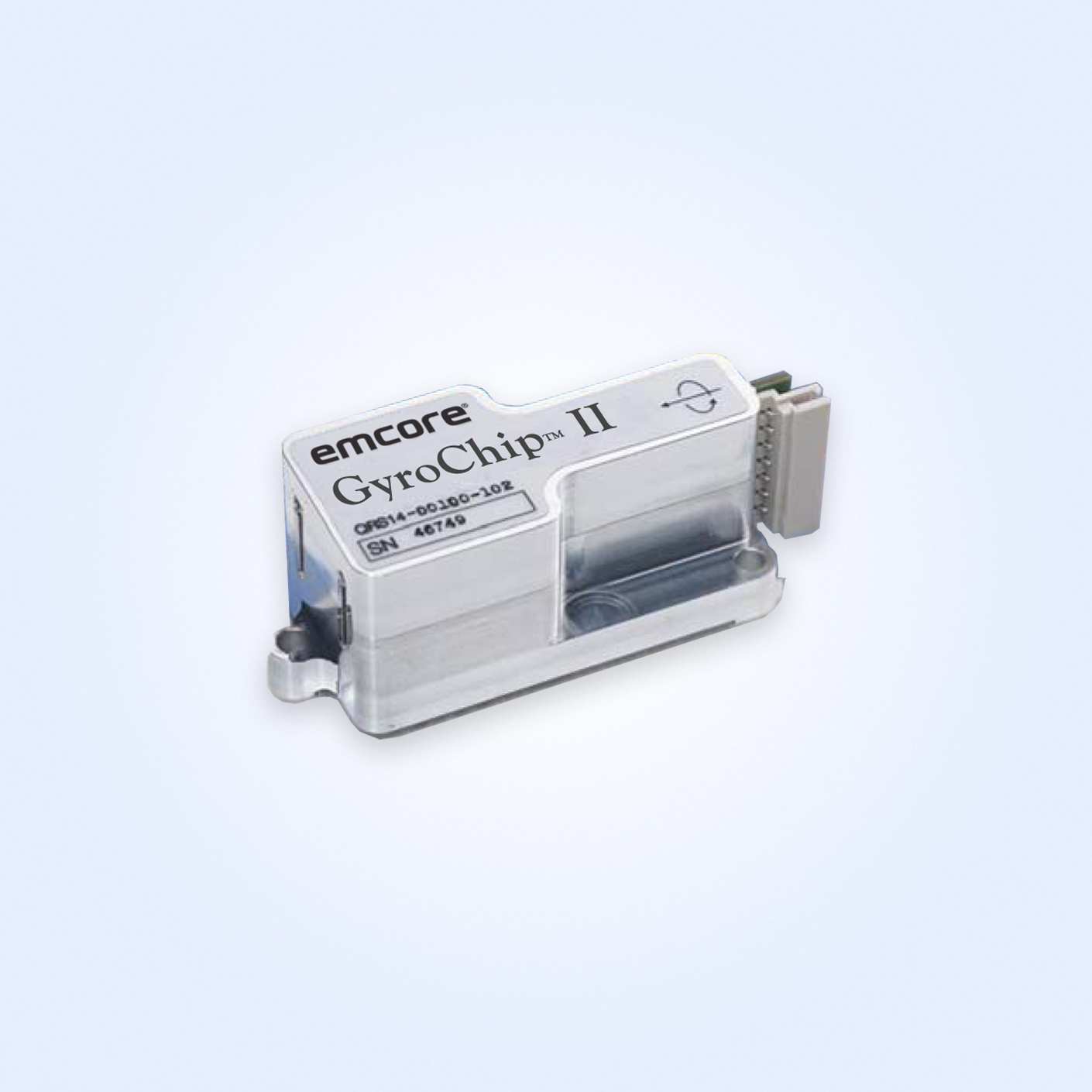

The QRS14 is an exceptionally capable solid-state gyroscope expressly designed for use in a broad range of applications. Featuring solid-state quartz MEMs technology, this unit combines excellent vibration, noise, and virtually unlimited life. Enclosed in a compact housing, the QRS14 provides a DC voltage input, analog DC voltage output proportional to the rotational rate. The QRS14 is available in two different model variations, with either a positive or dual-power supply option.
System Performance
| PARAMETERS | SPECIFICATIONS |
|---|---|
| Standard Ranges | ±50, 100, 200, 500°/sec. |
| Input Voltage | +9 to +18 Vdc |
| Full Scale Output (nominal) | +1.0 Vdc (-FS) to +4.0 Vdc (+FS) |
| Bias Calibration (at +22°C) | +2.5 ±0.045 Vdc |
| Bandwidth (-90°) | >50 Hz |
| Operating Temperature | -40°C to +85°C |
| Vibration Operating (Random, 20 to 2KHz) | 5 grms 20 Hz to 2 kHz random |
| Shock, Survival (Pulse - 2ms, 1/2 sine) | 200g, any axis |
Optional Accessories:
Tri-axis mounting bracket
Contact Factory
