TAC-DSP-1750 Fiber Optic Gyro

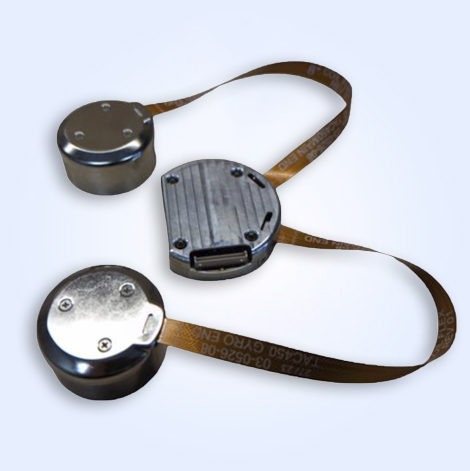

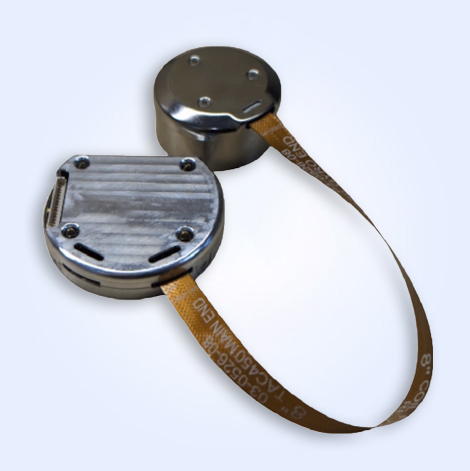

TAC-DSP-1750 Single Fiber Optic Gyro TAC-DSP-1750 Double Fiber Optic Gyro Close-up of a surveillance camera mounted on a helicopter against a clear blue sky. NASA's Global Hawk UAV in flight against a clear blue sky.

Product Documentation:

Engineered for the Tightest Spaces

EMCORE takes fiber optic gyro (FOG) technology to a new level of performance with the TAC-450 series based DSP-1750, the world’s smallest high-accuracy FOG. Available in both single and dual-axis configurations, the TAC-DSP-1750 is designed for a wide range of precision navigation, stabilization, and pointing applications where low noise and high performance across the entire range of operating temperatures are critical. Ideal applications include long-range optical and sensor systems, gimbals, tactical missiles, autonomous vehicle navigation, and the stabilization of virtually all types of commercial equipment platforms.

Trusted for the Toughest Missions

The TAC-DSP-1750 delivers performance never before achieved in FOGs of similar size. Available in single or dual-axis gyro configurations, the TAC-DSP-1750 is a high bandwidth, extremely low noise sensor. the TAC-DSP-1750 integrates magnetic shielding within the gyro housing, providing improved performance in systems with problematic magnetic environments. It delivers extremely low noise coupled with high bandwidth.

Highlights

  • Extremely low noise, high bandwidth
  • PIC Technology
  • Integrated Heatsink
  • Backwards compatible with Legacy DSP-1750 hardware

Features

  • Commercial off-the-shelf (COTS) product
  • Magnetic shielding included
  • Proven reliability – MTBF >36,000 hrs (Ground Mobile)
  • Excellent bias instability and angle random walk performance
  • Superior Bias Stability: ≤0.05°/hr, 1σ (typical); ≤0.1°/hr, 1σ (max)
  • Patented Digital Signal Processing (DSP) electronics design

Applications

  • Gimbals
  • Optical/antenna stabilization
  • Equipment platform stabilization
  • Payloads for UAVs
  • Weapons platform stabilization
  • GPS/INS, IMU integration
