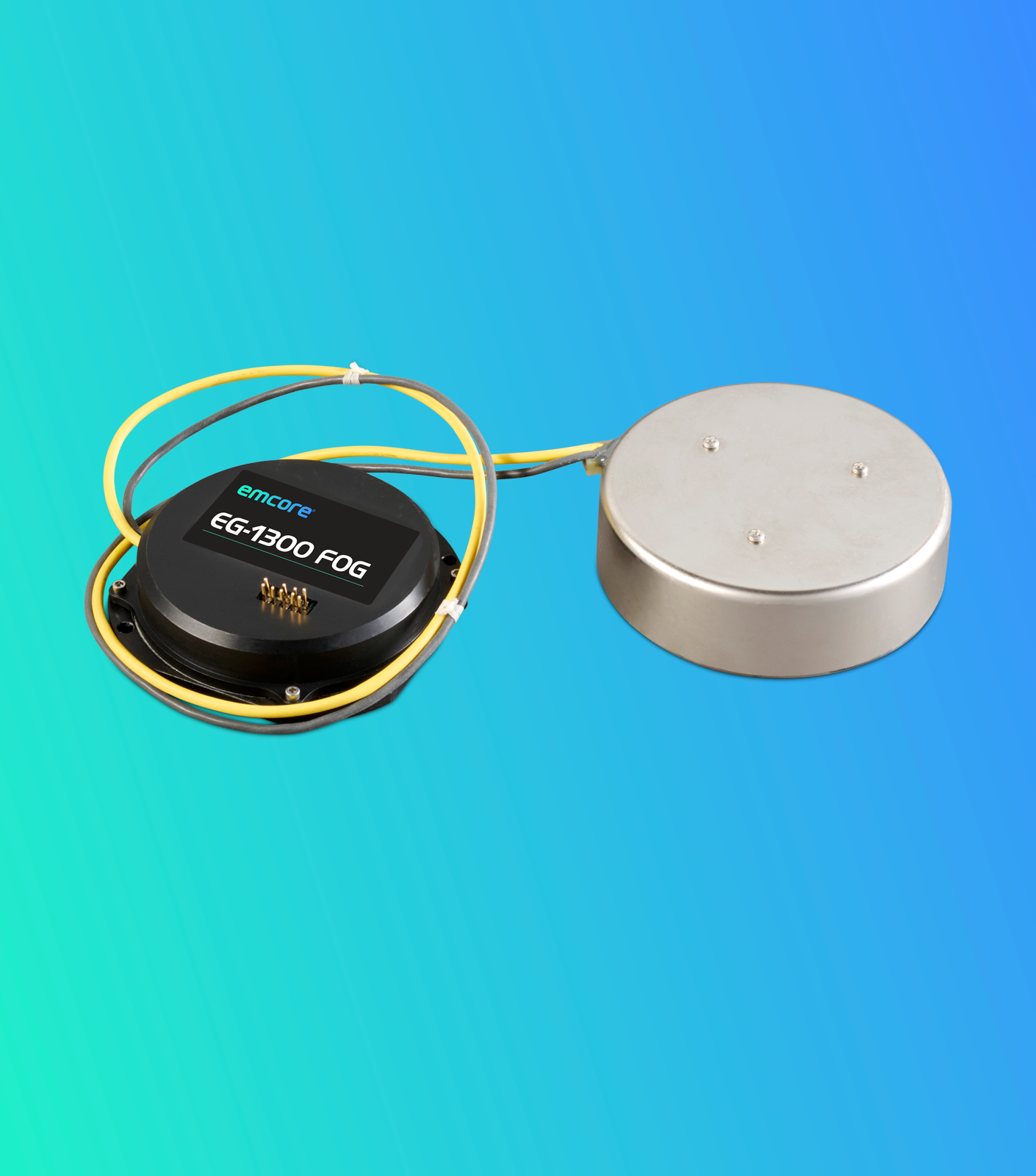

EG-1300 FIBER OPTIC GYROSCOPE (FOG)
The EG-1300 Fiber Optic Gyro features fully-integrated optics and electronics and is a superior device in regards to weight and form-factor for navigational applications. Its advanced integrated optics and closed-loop Field Programmable Gate Array (FPGA) electronics deliver much higher accuracy, lower noise and greater efficiency than competing technologies. In addition, the EG-1300 can be calibrated internally for better thermal effect and has both digital and analog outputs, along with separation of the electronics from the FOG’s sensing coil assembly to accommodate the widest variety of installation parameters.
| PARAMETERS | |
|---|---|
| Fiber Optic Gyro Type | Closed-Loop |
| Input Rate (maximum) | ±300°/sec |
| Bias Over Temperature | 0.1°/hr (Typical) |
| Bias In-Run Stability (25 °C) | ≤0.01°/hr, 1σ (max) |
| ARW (Angle Random Walk) (25 °C) | ≤0.002°/√hr |
| Bandwidth (-3 dB) | 500 Hz |
EMCORE’s Fiber Optic Gyroscope (FOG) technology is designed for fast, accurate navigation and gyrocompassing, and low-noise line-of-sight stabilization. Our longstanding leadership in the development of highly accurate defense and military grade fiber optic components and systems has paved the way for the development of more accurate and economical fiber optic gyro components. EMCORE’s FOGs are setting the new benchmark for tactical and navigational grade gyros for a wide variety of guidance, navigation and aeronautics applications.
- Fully-integrated optics and electronics
- Advanced optics and FPGA electronics for higher accuracy, lower noise and greater efficiency
- Precise navigation (1 mile/hour without GPS)
- Fast, precise gyrocompassing to 1 milliradian
- Bandwidth to 500 Hz
- Separate electronics and sensor modules
- More economical than competing systems
Navigational grade applications
Unmanned aerial vehicle (UAV) guidance
Missile guidance
Aeronautics and aviation
Robotics
